JCD VERTICAL LIFTING CLAMPS
JAPAN MODEL

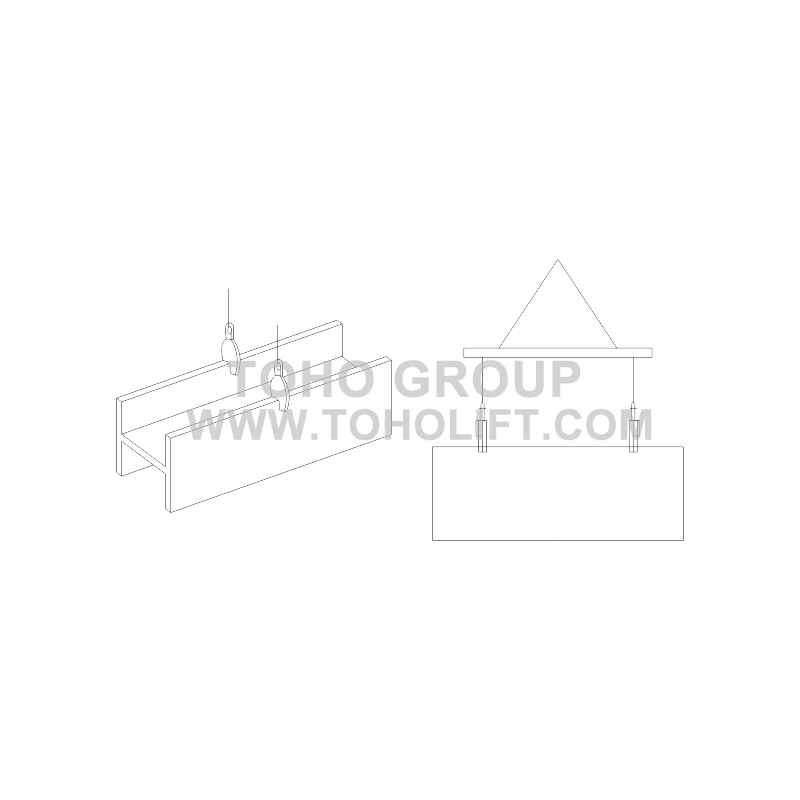

Suitable for vertical lifting of steel plates and steel structures
Capacity: 0.8-20T
Made of high-quality low-carbon alloy steel
It is fitted with a locking device for both open and closed positions,
which ensures complete safety
High-frequency quenching of die-forged special alloy steels
enhance the strength and durability of the tooth plate
The working load is the capacity of one piece. It may be used
singly or pairs of clamp used together
Do not crash the lifted cargos during the lifting and transfer period
|
Model |
Working load (kg） |
Testing load (kg) |
Opening Size (mm) |
Net weight (kg) |
|
JCD-0.8 |
800 |
1600 |
0-16 |
2.8 |
|
JCD-1.0 |
1000 |
2000 |
0-22 |
4.2 |
|
JCD-2.0 |
2000 |
4000 |
0-25 |
5.5 |
|
JCD-3.2 |
3200 |
6400 |
0-35 |
9.5 |
|
JCD-5.0 |
5000 |
10000 |
0-50 |
16 |
|
JCD-8.0 |
8000 |
16000 |
0-60 |
23 |
|
JCD-10 |
10000 |
15000 |
0-80 |
33 |
|
JCD-12 |
12000 |
18000 |
20-90 |
37 |
|
JCD-16 |
18000 |
24000 |
40-100 |
46 |
|
JCD-20 |
20000 |
30000 |
60-120 |
76 |
|
