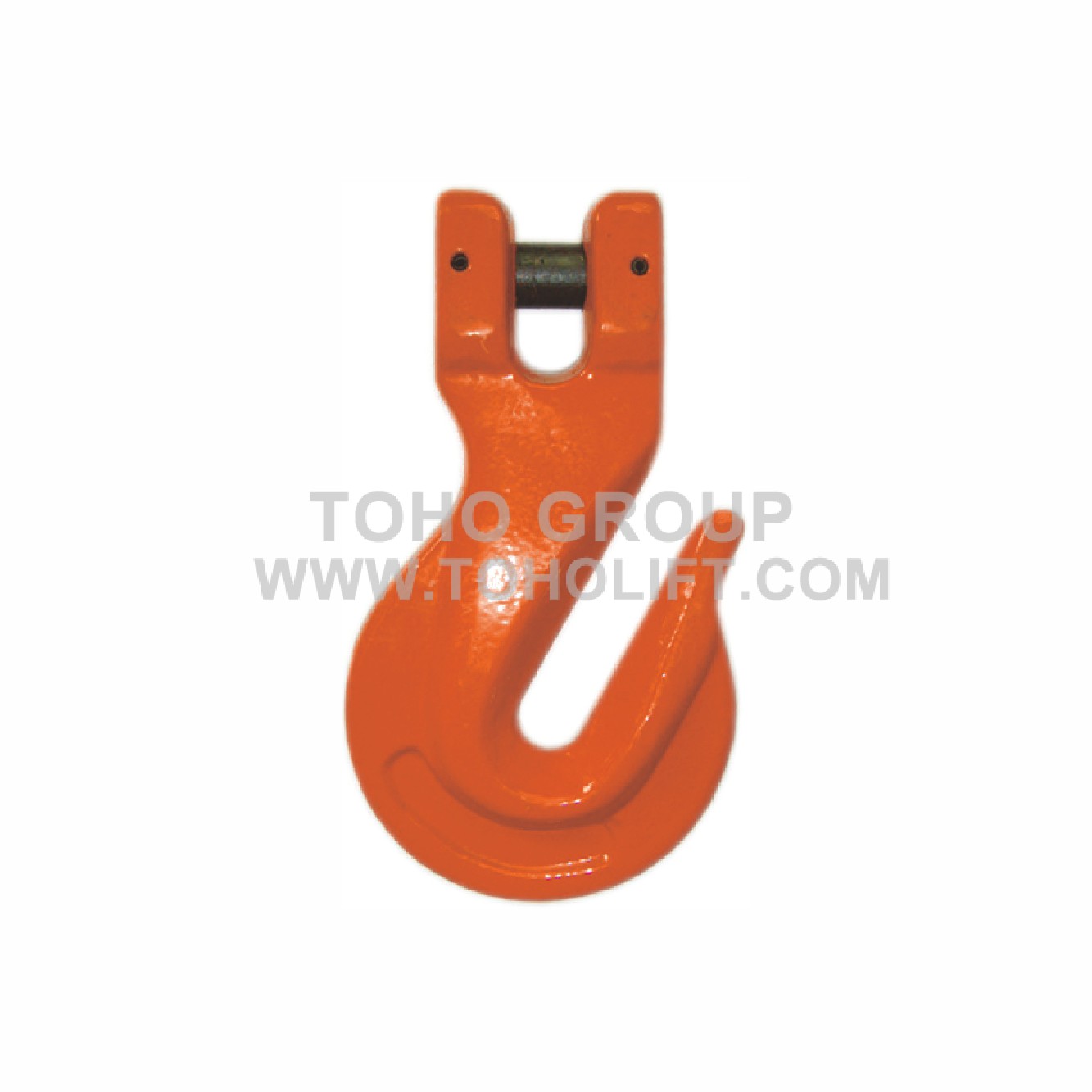

G80 Clevis Chain Clitch (TH-73)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L (t) |
B.L (t) |
Dimension (mm) |
N.W.(kg/pc) |
||||
|
A |
B |
C |
E |
L |
||||
|
6-8 |
1.12 |
4.48 |
7.5 |
7.5 |
33 |
26 |
73.5 |
0.17 |
|
7/8-8 |
2.0 |
8.0 |
9.5 |
9.5 |
45 |
36 |
101 |
0.41 |
|
10-8 |
3.15 |
12.6 |
13 |
13 |
55 |
48 |
138 |
0.97 |
|
13-8 |
5.3 |
21.2 |
18 |
16 |
75 |
59 |
177 |
2.01 |
|
16-8 |
8 |
32 |
21 |
21 |
93 |
73 |
220 |
3.32 |
|
18/20-8 |
12.5 |
50 |
22 |
22 |
99 |
78 |
238 |
6.2 |
|
22-8 |
15 |
60 |
25.5 |
25.5 |
118 |
98 |
295 |
8.5 |
|
