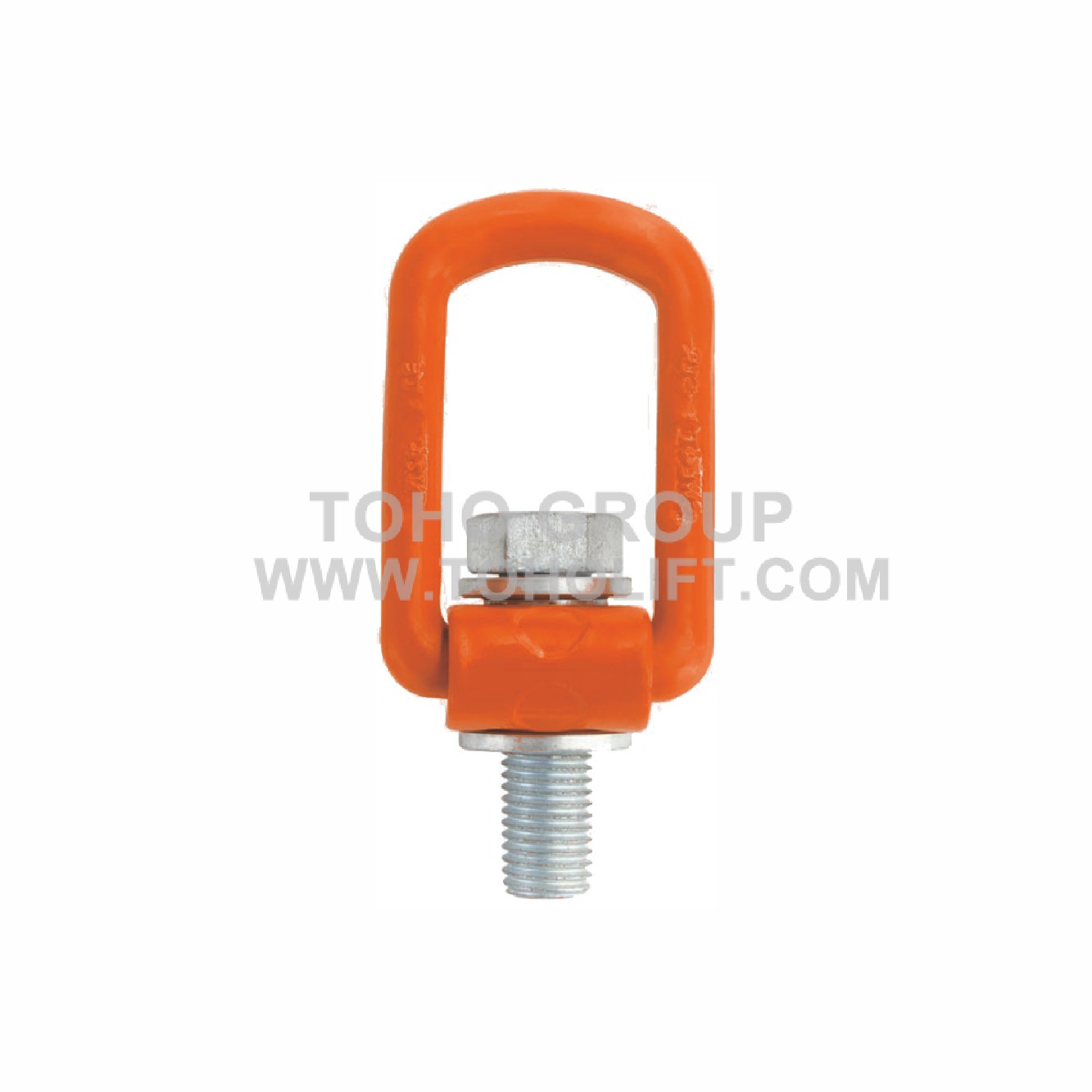

G80 Pivoting Lifting Screw (TH-173)
■ Powder coated, different color is available as per request.
■ Working load limit permanently shown on the body.
■ Max proof load is 2.5 times of the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.
|
Size |
W.L.L |
B.L. |
Dimension (mm) |
N.W.(g/pc) |
||||
|
|
(t) |
(t) |
A |
B |
D |
M |
L |
|
|
M20 |
2.5 |
10 |
54 |
74 |
50 |
83 |
159 |
159 |
|
M24 |
4 |
16 |
54 |
88 |
50 |
83 |
175 |
175 |
|
