TOHO Chain Davit Crane is a vehicle-mounted lifting tool that uses a chain system instead of old-fashioned steel wire rope.
It is designed for trucks, flatbeds, and mobile work platforms.
This crane meets European DIN and BS safety standards. It gives you a good balance of cost and performance – not too expensive, but safe and reliable.
Main Features
No rope tangling – The chain drive avoids the common headache of wire rope twisting or jamming. You don't have to stop and fix the cable often. More work, less waiting.
Flexible lift height – You can choose the chain length based on your job. No fixed height limit. Power options are flexible – use the truck battery, an external power converter, or a separate battery. Fits both parked and moving vehicles.

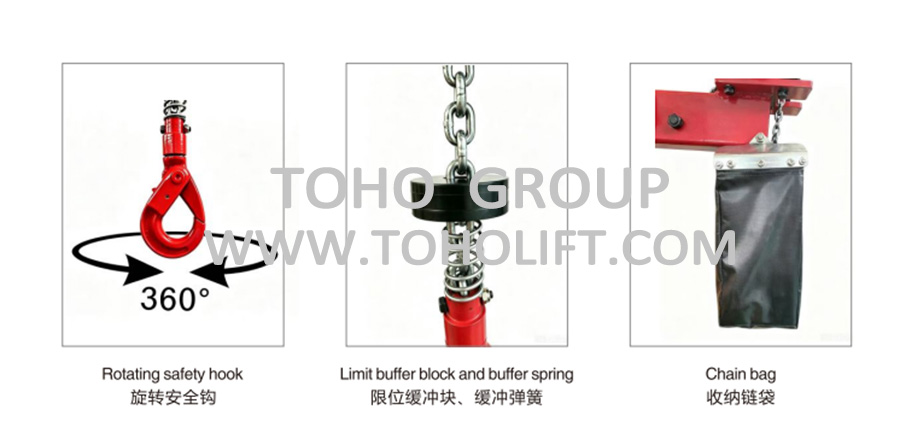

Dual anti-overrun protection – Includes a buffer block plus a buffer spring (both physical and structural). This stops the hook from hitting the top. Electronics are IP55 rated – they resist dust and water spray. Works well in rain, dusty sites, or hot outdoor conditions.
Strong chain material – The chain is wear-resistant, impact-resistant, and cut-resistant. It lasts much longer than ordinary chains. A special storage bag is included to keep the chain tidy and make your truck look more professional.
Technical Data
| Model | PC-LD-500/800 |
| Lifting Capacity (kg) |
500(single fall)/800(two fall) |
| Test Load (kg) | 550/880 |
| Stand Lifting Height (m) | 3 |
| Load Chain Size（mm） | 4*12 |
| Max.Lifting Height（base to hook）（mm） | 1950 |
| Max Reach (From center of rotation) （mm） | 1500 |
| line speed with No Load （m/min） | 7.3 |
| Lifting speed under rated load （m/min） | 1.04 |
| Lowering speed under rated load （m/min） | 2.85 |
| Power Requirements （v） | 12/24（DC） |
| Cable of control handle（m） | 3.7 |
|
Mounting base（mm） |
250X250X16 |
|
Mounting dimension of bolts（mm） |
170X170 |
| Net Weight（kg） | 63 |
| Packing dimension（mm） | 1570X420X590 |
Product Advantages
More affordable than many European-made cranes
Less downtime – chain system is more stable and needs less care
Safer operation – dual protection and IP55 electronics
Easy to install – no major changes to your vehicle needed

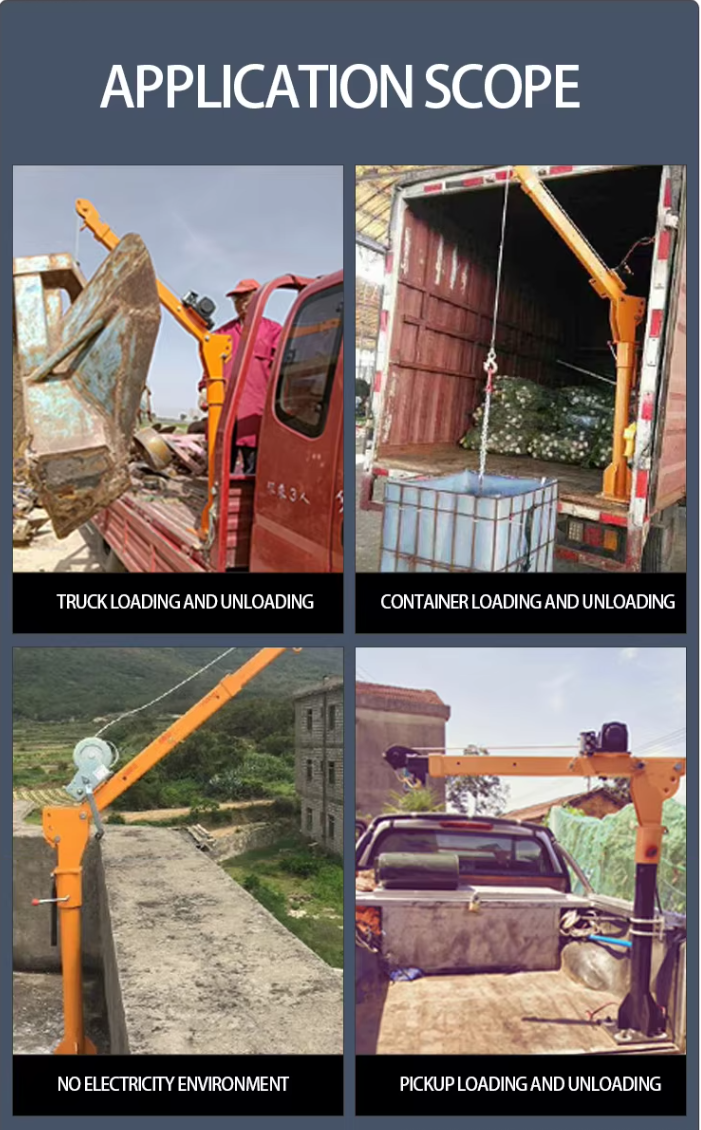

Applications
This davit crane is suitable for many jobs, such as:
Flatbed trucks and trailers
Lorry-mounted cranes
Construction and building sites
Warehouses and workshops
Farms, ranches, and outdoor work
Any lifting task where you need to move heavy goods quickly and safely
Packaging

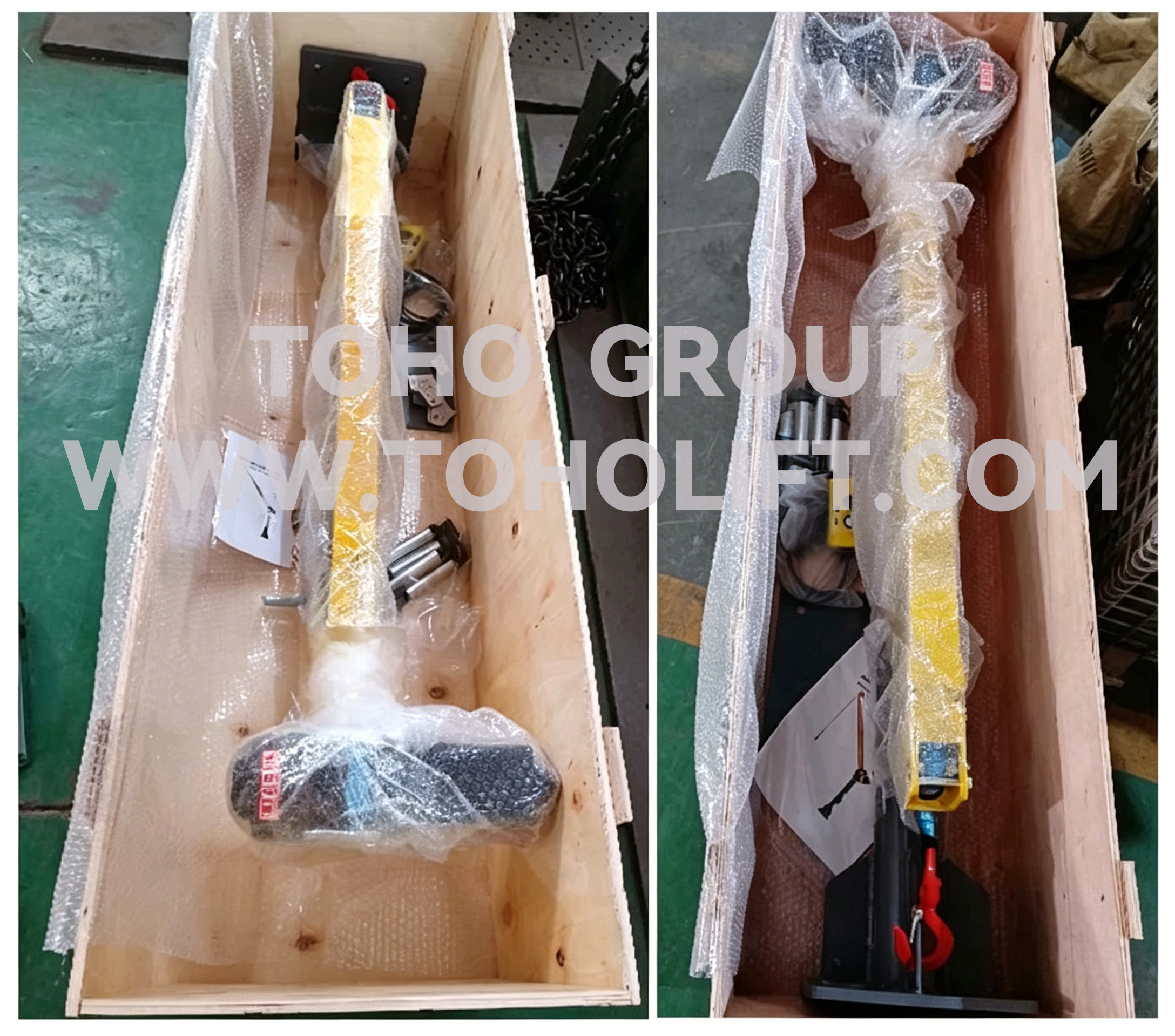

Each unit is packed in a strong export wooden carton with soft foam inside to protect the crane during long sea or air shipment.
The chain, mounting parts, and accessories are organized neatly. All parts are clearly labeled, so you can easily check the contents when you receive the package.
