TOHO new generation series products electric chain hoist TH-K model, from the capacity range 125kgs to 2000kg. It can meet the customer's demand for light -lifting equipment. The TH-K type electric chain crane continues to uphold the outstanding quality, product innovation and exquisite craftsmanship of TOHO.
Model
Capacity(ton)
Lifting Height(m)
Lifting Speed(m/min)
Lifting Motor
Power(KW)
Rotation speed(r/min)
Phases
Voltage(V)
Frequency(Hz)
TH-K0012501
0.125
3
8/2
0.4/0.1
2880/720
3/1
220-460
50/60
TH-K002501
0.25
3
8/2
0.4/0.1
2880/720
3/1
220-460
50/60
TH-K00301
0.3
3
13/3.2
0.75/0.2
2880/720
3/1
220-460
50/60
TH-K00501
0.5
3
8/2
0.75/0.2
2880/720
3/1
220-460
50/60
TH-K00502
0.5
3
4/1
0.4/0.1
2880/720
3/1
220-460
50/60
TH-K00602
0.6
3
6.5/1.6
0.75/0.2
2880/720
3/1
220-460
50/60
TH-K0102
1
3
4/1
0.75/0.2
2880/720
3/1
220-460
50/60
TH-K0101
1
3
8/2
1.5/0.4
2880/720
3/1
220-460
50/60
TH-K0202
2
3
4/1
1.5/0.4
2880/720
3/1
220-460
50/60

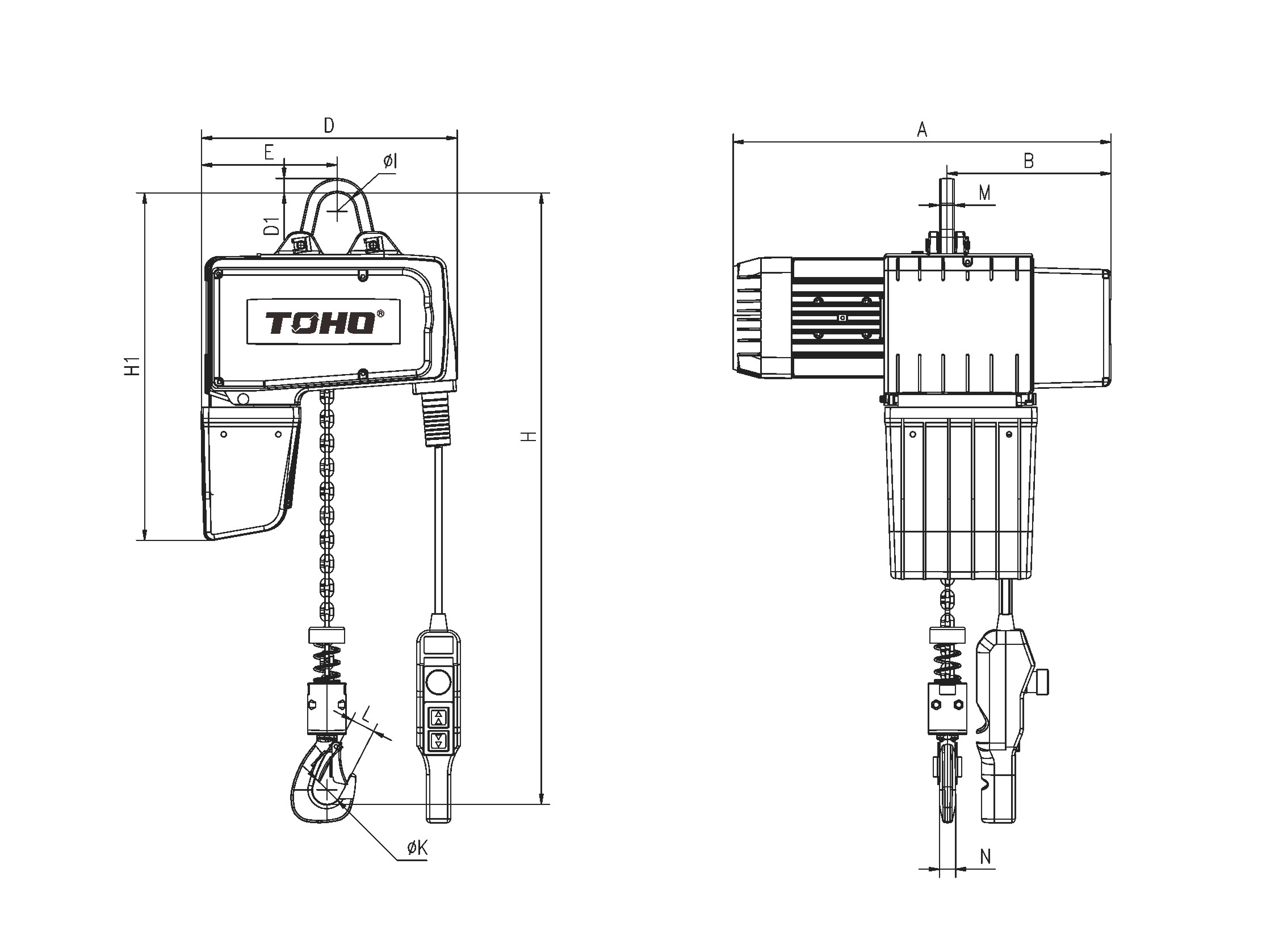

Model
Capacity(ton)
Unit(mm)
H
H1
A
B
D
D1
E
I
K
L
M
N
Chain Dia. x chain falls
TH-K0012501
0.125
417
417
441
241
297
18
159
46
29
28
18.6
17
5mm x 1
TH-K002501
0.25
417
417
441
241
297
18
159
46
29
28
18.6
17
5mm x 1
TH-K00301
0.3
454
424
471
266
318
18
170
46
36
30
18.6
20
5mm x 1
TH-K00501
0.5
454
432
471
266
318
18
170
46
36
30
18.6
20
5mm x 1
TH-K00502
0.5
482
474
441
241
297
18
159
46
42
35
18.6
25
5mm x 2
TH-K00602
0.6
505
481
471
266
318
18
170
46
42
35
18.6
25
5mm x 2
TH-K0102
1
505
481
471
266
318
18
170
46
42
35
18.6
25
5mm x 2
TH-K0101
1
542
547
569
308
348
27
183
60
42
35
24
25
7.1mm x 1
TH-K0202
2
626
645
569
275
348
27
183
60
52
41
24
35
7.1mm x 2
Excellent performance
TH-K model electric chain hoist motor can meet the strict national first-level energy efficiency standards. Even in extreme conditions ranging from -20°C to +60°C, this product can still operate normally.
Safety protection
TH-K model electric chain hoist is equipped with contact limit switches, friction clutches, electromagnetic brakes, low safety control voltage, emergency stop buttons, and its body structure has been strengthened to enhance the product's safety factor, ensuring the safety of users.
Convenient maintenance

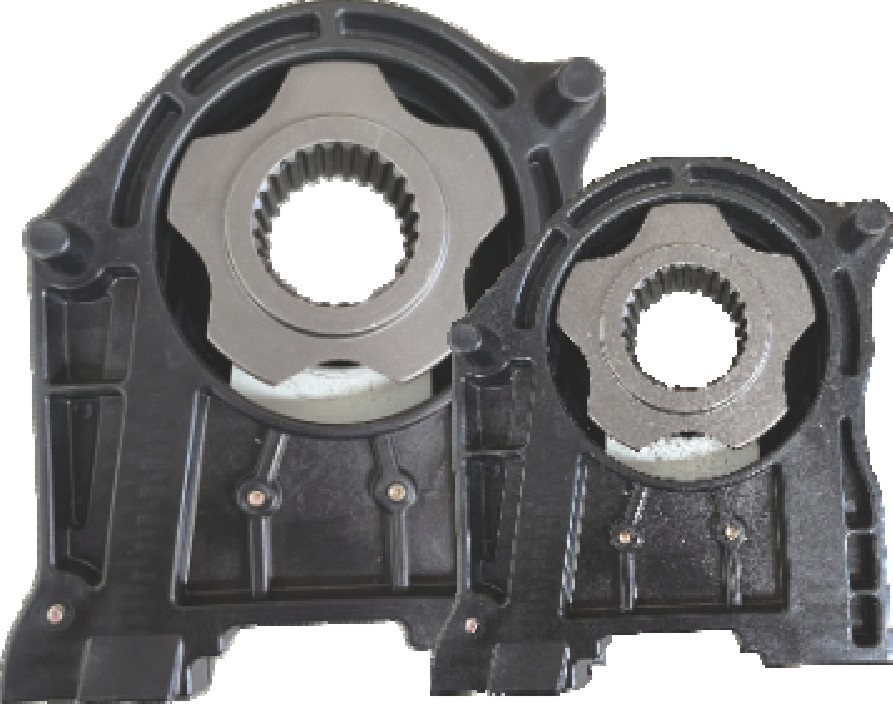

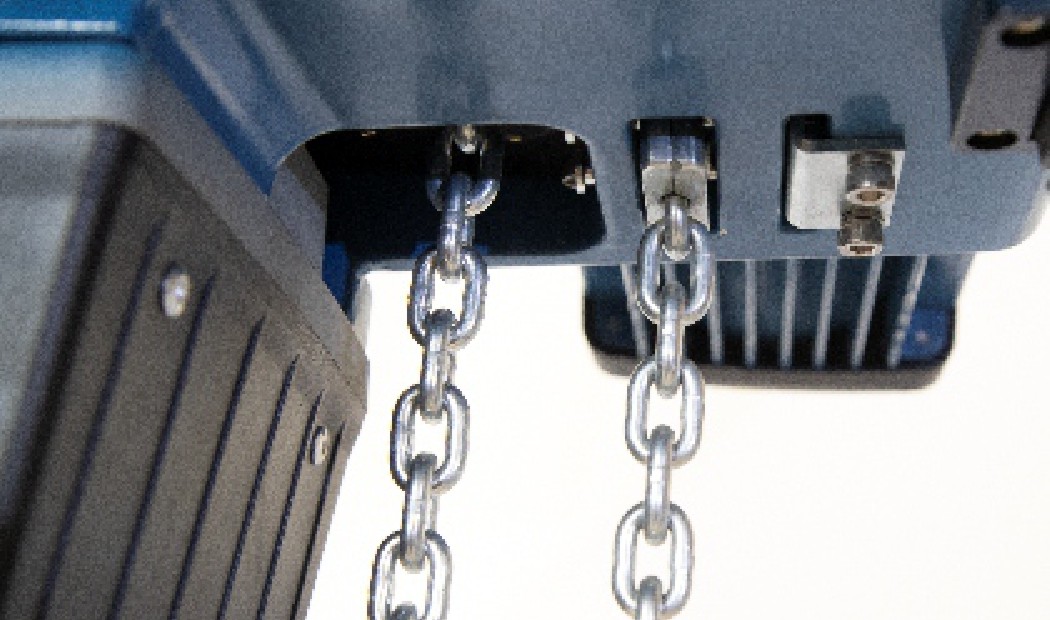

TH-K model electric chain hoist cleverly integrate the solid body with flexible design. You can quickly replace the chain wheel without disassemble the whole hoist. The detection of the state of the electric and brakes is simple and efficient,which greatly saves maintenance time and cost.
Structural combination

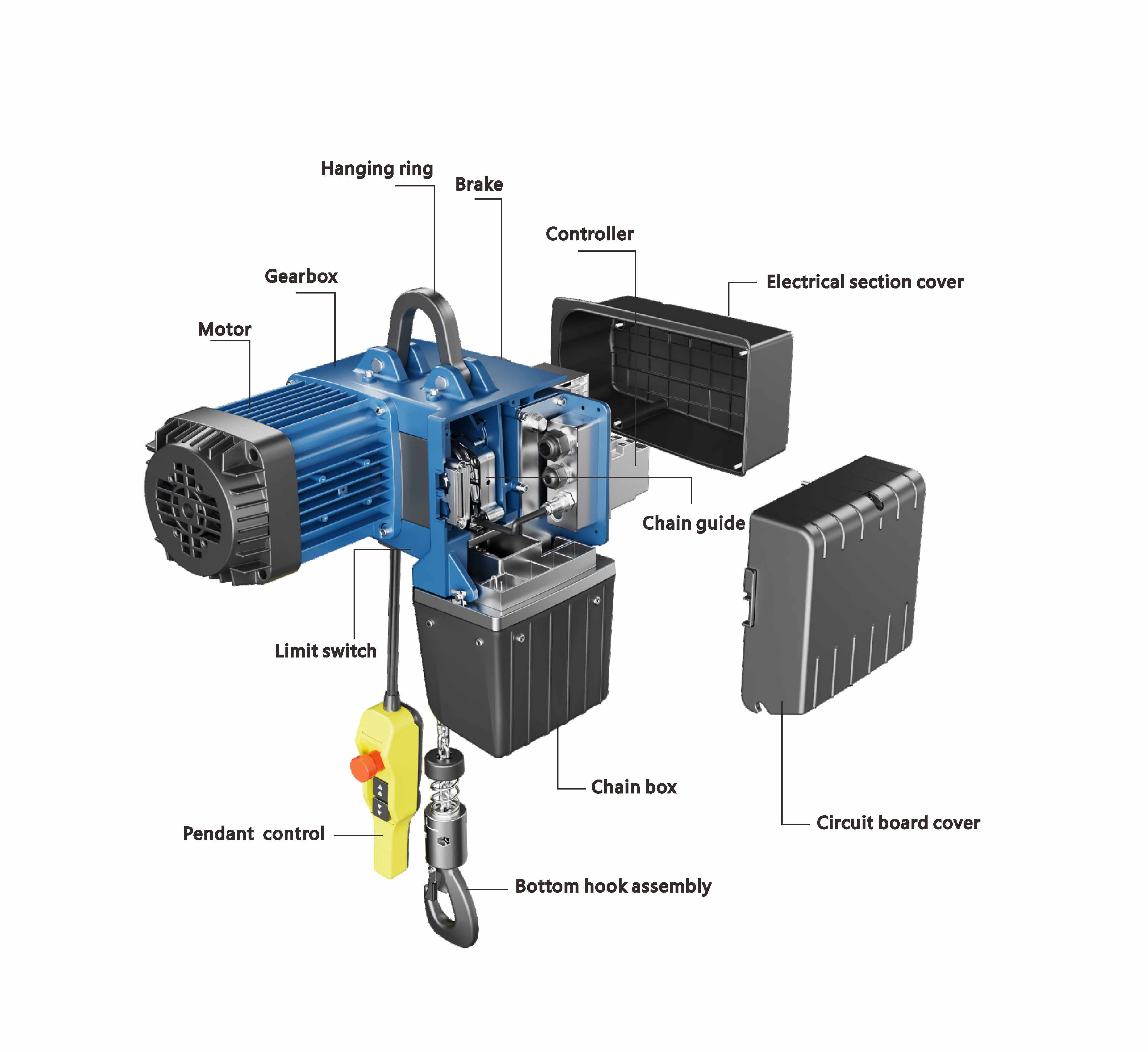

The TH-K type electric chain crane is equipped with high-performance motors, reducers and a compact electronic control system. Its optimized design enables the load to reach the maximum height within a limited space.
Applicable place
The TH-K type electric chain crane can be used independently or combined with single-track suspended cranes, cantilever cranes and other equipment. They are suitable for assembly on product assembly lines, single station suspension, and maintenance of wind power equipment, etc.
Voltage range
The optional input voltages ranging from 220 to 460 volts, with single-phase and three-phase options available, as well as the standard safety control voltage of 36 volts (with the option of 24/48 volts), provide more choices for users from different countries.
